Yes, a 3D printed Aztec death whistle can scream, but many don’t. The result depends far more on the file and on what happens inside the print than on your printer. Simple, well-tested designs like the free Maya Death Whistle by Tacblades get a steady stream of “it’s loud” reports from makers. More detailed prop-style models often come out sounding like a gust of wind, or like nothing at all. When a print fails, the cause is almost always hidden inside: a support strand, a string of plastic or a blob sitting in the tiny air passage.
Does a 3D Printed Death Whistle Actually Scream?
Start with what the real thing does. A 2024 study from the University of Zurich (Frühholz et al., Communications Psychology) describes Aztec skull whistles as producing a noisy, wind or hiss-like sound that can become shrill, piercing and scream-like when played with intensive air pressure. So even an authentic design sits on a range from “wind” to “scream,” and your breath decides where it lands.
Maker comments on Printables show the same range, with a clear split between designs:
- On the Mayan Death Whistle page (a copy of Tacblades’ design, according to its own commenters), most makes report a loud, unsettling result, often printed with no supports at all.
- On the Ghostbusters: Afterlife Aztec Death Whistle page, a large share of makers say it looks great but sounds like wind, a plain whistle, or makes no sound. One maker who compared it with other death whistles concluded it was simply too tight inside.
The takeaway: pick a design with a track record of working prints, then protect the internal passage while printing. If you want to know what you’re aiming for, our page on the Aztec death whistle sound explains the target.
Why the Inside Geometry Makes It Hard to Print
The Zurich team CT-scanned original whistles from the Ethnological Museum in Berlin and found four main compartments:
- a tubular air duct with a constricted passage
- a hemispherical counterpressure chamber
- a collision chamber between the two
- a bell that lets the sound out
The scream comes from air being forced through a narrow duct, pushed back by the counterpressure chamber, and colliding with itself. For a printer, that means a small hollow sphere floating inside a skull, a narrow channel with overhangs, and an exit that has to stay clean. Any stray plastic in the duct or collision chamber changes the airflow, and the sound goes with it.
Why 3D Printed Death Whistles Fail (What Makers Report)
Supports inside the chamber
This is the number one complaint. Once a support grows inside the whistle, you usually can’t get it out. Both popular designs tell you the same thing: Tacblades says to use supports touching the build plate only, and the Ghostbusters model by Celta asks you to print eyes up, in the default orientation, with supports on the build plate only. One maker on that page only got a working whistle on the second try, after switching from tree supports to normal ones because the trees kept creeping inside. Another said plainly that their whistle didn’t work because they used too many supports.
Stringing and blobs in the air passage
Several makers traced a silent or wheezy whistle to plastic left in the mouthpiece or top hole. The Quick Print Halloween Special by No.Anchovies (a remix of Tacblades’ file) tells you to clean up the top hole if there’s any stringing. One maker who printed with wet filament recommended dry filament next time. If yours won’t whistle, clean every opening gently with a toothpick or a thin wire before you reprint.
Nozzle size and layer height
Settings that work are all over the map, which tells you the design matters more than the numbers. Successful makes of the Mayan design use layer heights from 0.10 to 0.20 mm, with 0.4 and 0.6 mm nozzles. No.Anchovies tuned their remix for a 0.8 mm nozzle. Yet on the more detailed Ghostbusters model, one maker blamed a 0.6 mm nozzle for messing up the thin wall inside the exit hole, leaving only a whooshing sound. The safe default: a 0.4 mm nozzle and 0.12 to 0.20 mm layers, unless the designer says otherwise.
Orientation
Print the model the way the designer uploaded it. The internal channel was drawn to print with minimal support in that position.
Scaling changes the sound
Scaling a death whistle isn’t free. No.Anchovies scaled their version to 75% on purpose for a higher, scarier pitch. On the Ghostbusters model, one maker printed it at full size and at half size: the full-size one didn’t work well and the half-size one didn’t work at all. Others scaled up to 130% or 150% and got a haunted, wind-like tone. If you resize, expect to experiment.
Infill and walls
Here the advice conflicts. A Swiss 3D printing site, 33d.ch, suggests 20 to 30 percent infill with two or three outer walls so the body stays stable and largely airtight. Other guides push 100% infill. Many working makes of the Mayan design use 20 to 25% infill, so what matters most is solid, airtight walls around the air passages.
Sometimes it’s the technique, not the print
Before reprinting, check how you’re blowing. No.Anchovies says to hold it sideways. A few makers say the scream only appears with strong, sustained air, and one noticed the sound shifts with the angle. Our guide on how to use an Aztec death whistle walks through grip, angle and breath.
Quick Print Checklist
- Choose a design with many working makes (read the comments first).
- Keep the uploaded orientation.
- Supports: build plate only, or none if the designer says none.
- 0.4 mm nozzle, 0.12 to 0.20 mm layers, at least 2 to 3 walls.
- Dry filament, tuned retraction, minimal stringing.
- Clean every opening before testing.
- Test outdoors or in a large room, away from people’s ears.
PLA vs PETG vs Resin: What Changes
PLA is the easy choice and what most successful makers use. It prints crisply at small sizes, which keeps the narrow duct clean.
PETG is tougher and more temperature-resistant (33d.ch lists it as the more robust option), so it survives a hot car or a hard drop better. It also tends to string more, and strings are exactly what blocks a whistle. Plenty of makers report working PETG whistles; just dial in retraction first.
Resin gives the smoothest surfaces and the finest detail, but hollow parts bring a specific problem: uncured resin can get trapped inside. Prusa’s guide to hollowing resin prints explains why hollow objects need drain holes to let liquid resin escape. A death whistle’s inside is a narrow maze, so wash and cure it thoroughly. You’ll be putting it to your lips, and uncured resin is not something you want there.
Where to Find the Popular Free Files
All of these are free to download:
- Thingiverse: Maya Death Whistle (Easy Print, Very Loud) by Tacblades. The design most other popular versions come from. Licensed CC BY-NC-ND 4.0, and the designer explicitly asks that it never be sold.
- Printables: Mayan Death Whistle (commenters say it matches Tacblades’ design), the Ghostbusters: Afterlife Aztec Death Whistle by Celta (a corrected version of HawkWorley’s Thingiverse model), and the Mayan/Aztec Death Whistle Quick Print Halloween Special by No.Anchovies.
- MakerWorld: search “death whistle” for several free models, including one simply titled Aztec death whistle.
If you plan to sell your prints, read the license first. Many of the best-known files are non-commercial only.
How to Make an Aztec Death Whistle From Clay
The originals were made of clay. According to the Zurich study, they date to between 1250 and 1521 CE and measure only about 3 to 5 cm. The most famous examples come from Tlatelolco in Mexico City, where archaeologists found a sacrificed young man buried in front of the temple of Ehécatl, the wind god, with skull whistles in his hands (Mexicolore). You can read more about the finds in are Aztec death whistles real?.
Making a working one by hand is real acoustic craftsmanship. The internal chambers have to be shaped before the skull is closed around them, which is why the Zurich researchers checked their clay replicas (made by Arnd Adje Both and Osvaldo Padrón Pérez) with CT scans to confirm the inside matched the originals. Engineer Roberto Velázquez Cabrera, who wrote Mexicolore’s technical article on the death whistle, reports that several construction procedures were tested and many experimental models were produced. If you want to try clay, study the cross-section on that page first and expect a few failed whistles before one screams.
One honest note from Wikipedia’s entry: music archaeologist Arnd Adje Both has described the sound of the small originals as far softer than the viral clips, closer to wind, with the loudest shrieks coming from larger modern replicas.
3D Printed vs Clay vs Ready-Made Replica
| 3D printed (FDM) | Handmade clay | Ready-made replica | |
|---|---|---|---|
| Sound | From wind to full scream, depends on file and print | Can be the most authentic; hard to get right | Varies by seller and model, no tuning on your side |
| Feel | Light, visible layer lines unless finished | Heavy, cool, stone-like | Depends on the material; ask the seller |
| Durability | PLA can crack; PETG survives drops better | Can chip or break if dropped | Varies by material |
| Effort | Several hours of printing per whistle, plus tuning | Days of shaping, drying and firing | None |
| Consistency | Each print can sound different | Each piece is unique | Same model, same design |
Printing is the cheapest route if you own a printer, clay the most authentic and hardest, and a ready-made replica skips the trial and error.
If You’d Rather Not Print One

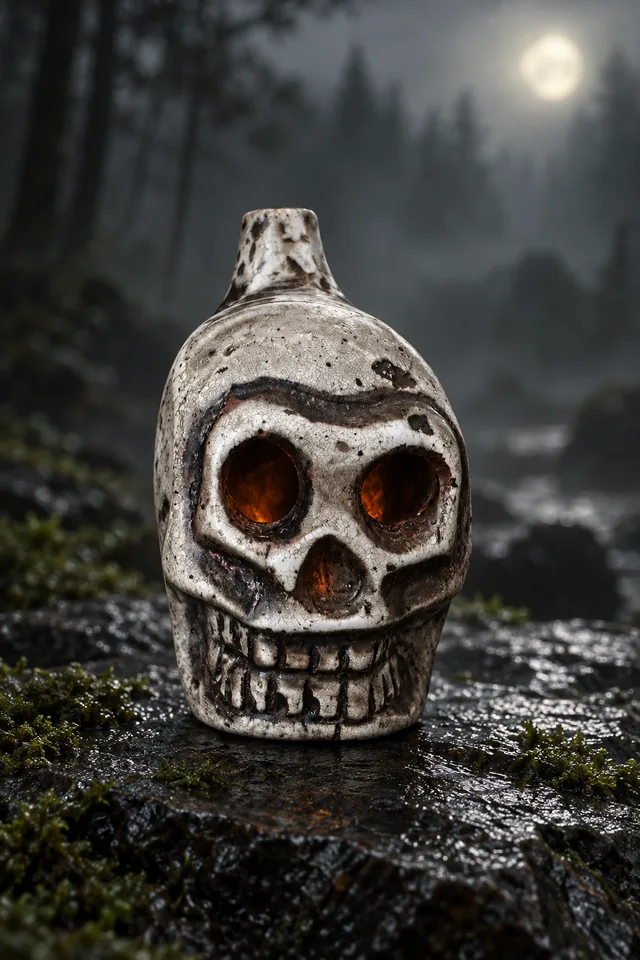

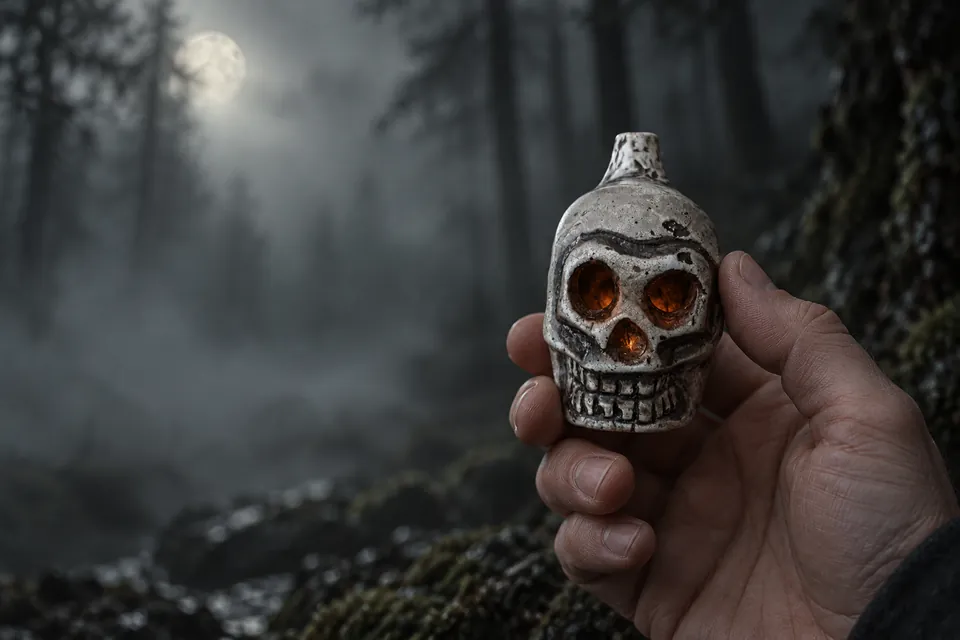

Not everyone has a printer, or the patience for three reprints. Our Aztec death whistle is a replica of the Tlatelolco skull whistles, about 7 cm tall, at $34.99. It ships with tracking in 7 to 13 days to the US, 4 to 16 days to Canada, the UK, Ireland, Australia and New Zealand, with 30-day returns. You can also learn more about the whistle and its history on our home page.
FAQ
Can a 3D printed death whistle be as loud as a real one?
It can be loud, and many makers of the Tacblades design call theirs painfully loud. Whether it matches a given clay or store-bought whistle depends on the file, the print quality and your breath. A clean internal passage matters more than the material.
What is the best free 3D print file for a death whistle?
The Maya Death Whistle by Tacblades on Thingiverse is the most-copied design and has a long record of working prints. Its Printables copies and remixes, like No.Anchovies’ Quick Print version, are good alternatives. Detailed movie-prop versions look better but fail more often.
Why does my 3D printed death whistle only sound like wind?
Usually something is in the airway: a support, a string or a blob in the duct or exit hole. Clean every opening, then check your technique (hold it sideways, blow hard and steady). If it still only whooshes, reprint with supports on the build plate only and dry filament.
Do I need supports to print a death whistle?
Some designs, like the Mayan version, print cleanly without supports. Others need a few, but only touching the build plate. Supports that grow inside the whistle are the most common reason prints go silent.
Can I sell the death whistles I 3D print?
Only if the file’s license allows it. Tacblades’ design is licensed CC BY-NC-ND 4.0, which forbids commercial use, and the designer asks that it never be sold. Always check the license on the model page.
